Ring Engineering AM-1


Click Cart to Checkout

AM-1 Accessory Controller Module

The AM-1 is a module that you can install on your model train layout and control 4 turnouts (switch tracks).  The AM-1 can be controlled and setup by a Ring Engineering RailPro Controller, such as the HC-2 Handheld Controller.

The AM-1 can also be used to control Accessory Projects.  You can control a turntable, swing bridge, oil pumps, lights in buildings, and much more!!! You can use our RailPro Assistant Software to design custom screens for your HC-2 to control your accessories!!!



Features:

Control up to 4 turnouts per Module
Control Snap or Motor Operated Turnouts


IN STOCK

Price $79.99


You will need a RailPro controller such as a HC-1 (Handheld Controller with Color Touch Screen - Not Included) to control, setup and monitor a AM-1. Actual HC-1 screen shots are show below!

Page to Control Turnouts

Pages to Setup Turnouts




A AM-1 can also be used to control Accessories!
Actual HC-2 screen shots are shown below!

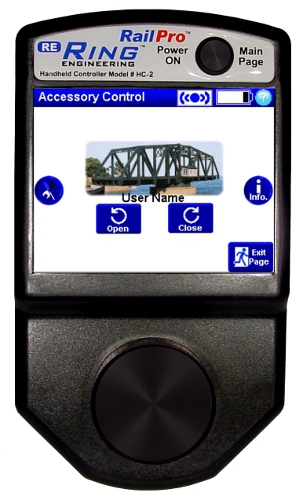

Example of a HC-2 setup to control a swing bridge.
To add sounds to your projects use an AM-1S.


Turntable Project
To add sounds to your projects use an AM-1S.


Oil Pump Project
To add sounds to your projects use an AM-1S.

Use our RailPro Assistant Software to design your own custom handheld screens to control your custom Accessory projects!!!!
Click here to go to the
RailPro Assistant Software page.

Important Note:  When an AM-1 is used as an Accessory Module, the AM-1 hardware  has 8 outputs that can be software controlled for 4 motor outputs or 8 sourcing outputs.  It also has another 8 I/O that can be configured for 8 inputs or 8 sinking outputs.  Currently there is only one software configuration available for the module (2 motor outputs, 4 sinking outputs, and 8 inputs).  We expect to offer more software configurations in the future.

Package Contents:
AM-1 Turnout Control Module
Instruction Sheet

US Patent 8,807,487
Made In USA
Not recommended for persons under the age of 14
